Zumo 660 Power Mount
Posted: Wed Apr 20, 2022 2:05 pm
by Bobbles54
Hi.
One of the Gold Pins on my Zumo 660 power mount has broken. Does anybody know how this will affect it’s performance?
Thanks.
Re: Zumo 660 Power Mount
Posted: Sat Apr 23, 2022 12:51 pm
by danham

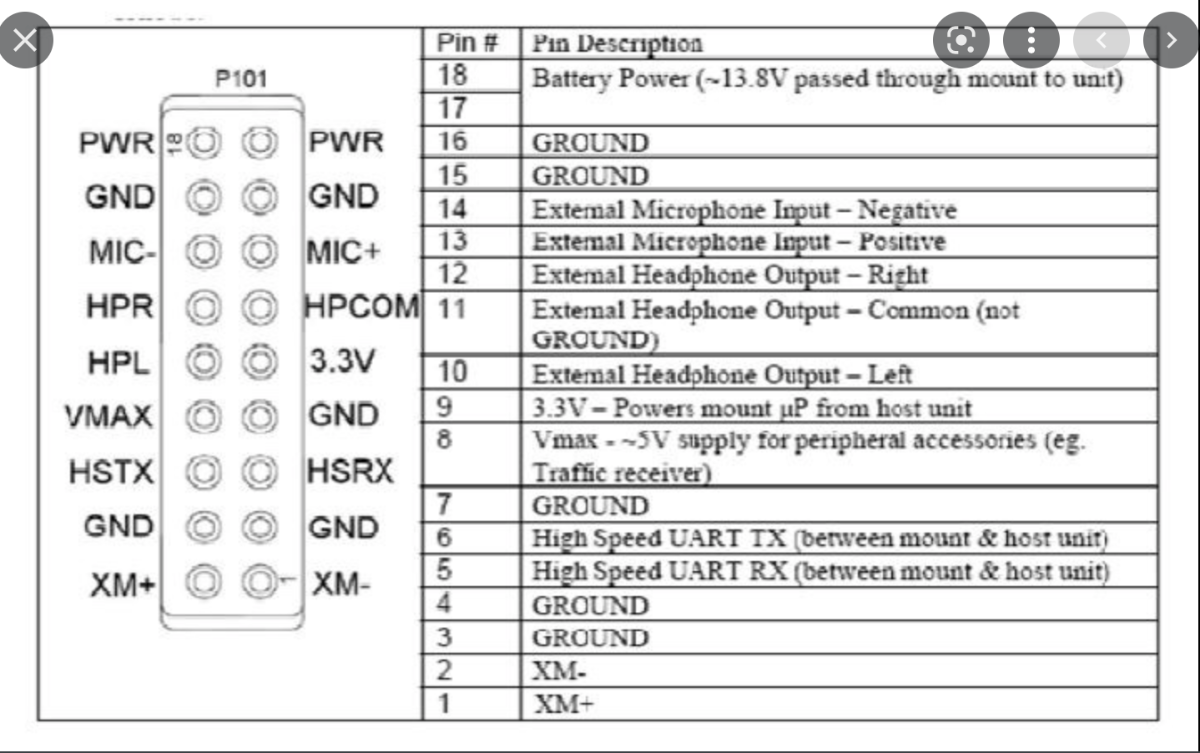

It would help to know which pin. For example, if it's #8 and you don't use a traffic receiver, no harm.
- Screen Shot 2022-04-23 at 8.49.32 AM.png (454.12 KiB) Viewed 5669 times
Re: Zumo 660 Power Mount
Posted: Sat Apr 23, 2022 8:07 pm
by Bobbles54
Hi,
Thanks

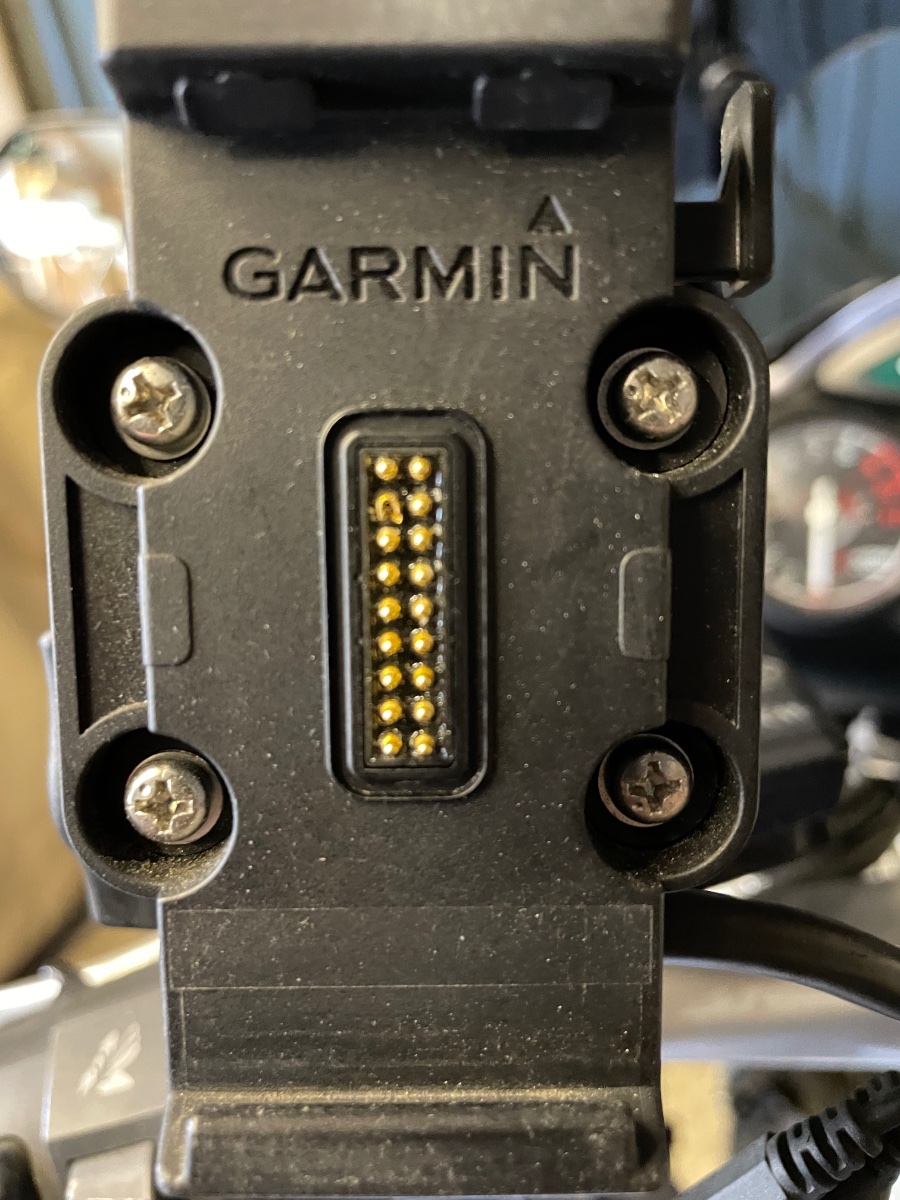

It’s the second pin down on the left hand side (16?)
Looks like it’s a GND connection.
Initially I thought it wasn’t charging through the mount but if I turn on the ‘diagnostic’ mode it indicates it’s charging ok.
Re: Zumo 660 Power Mount
Posted: Sat Apr 23, 2022 10:00 pm
by Bobbles54
- E3ABD485-024B-4F1C-9153-E9066D8A8949.jpeg (350.02 KiB) Viewed 5663 times
Re: Zumo 660 Power Mount
Posted: Mon Apr 25, 2022 9:58 am
by alan sh
There's 3 GND (Ground) pins. Losing one is probably OK.
Re: Zumo 660 Power Mount
Posted: Mon Apr 25, 2022 10:17 am
by Bobbles54
That’s what I’m hoping.
I’ll take it out for another ride this week to make sure before I head off to France.
Thanks for your assistance.
