I have mainly used my Zumo XT in the car, so I do know the charging works (via the car charger). However I cannot get the sat nav to charge in the cradle.
My multimeter indicates the two charge pins only give approx 5 mV (not 5 V).
I phoned Garmin Support and they immediately sent out a replacement power supply, but this replacement also gives approx 5 mV so the sat nav will not charge.
Does anyone have any ideas how I have gone wrong connecting two cables directly to a 12 volt battery? Surely both power supplies cannot be defective?
Thanks
Zumo XT has never worked in the cradle
-
- Posts: 5
- Joined: Sun Jun 04, 2023 4:00 pm
- Location: Newport
- Been liked: 1 time
-
- Posts: 5
- Joined: Sun Jun 04, 2023 4:00 pm
- Location: Newport
- Been liked: 1 time
Re: Zumo XT has never worked in the cradle
The battery is putting out 12.8V, so I dont think its the problem.
-
- Site Admin
- Posts: 983
- Joined: Sun Apr 22, 2018 9:38 pm
- Location: Hull, UK
- Has liked: 409 times
- Been liked: 229 times
Re: Zumo XT has never worked in the cradle
I'm not trying yo insult your inteligence here but you have got the connections the right way round haven't you?
Its been known for people to mix them up and not realise
Its been known for people to mix them up and not realise
Re: Zumo XT has never worked in the cradle
If it works thru the charger, you have a power delivery problem in the cradle.
Many people complained about the pins not touching the cradle connectors good enough. I gave up and use a usb cable and 3.0 socket.
Many people complained about the pins not touching the cradle connectors good enough. I gave up and use a usb cable and 3.0 socket.
-
- Posts: 5
- Joined: Sun Jun 04, 2023 4:00 pm
- Location: Newport
- Been liked: 1 time
Re: Zumo XT has never worked in the cradle
Red to red, black to black. I was going to try reversing them, just to see, but I think I should ask Garmin Tech support first.
-
- Posts: 5
- Joined: Sun Jun 04, 2023 4:00 pm
- Location: Newport
- Been liked: 1 time
Re: Zumo XT has never worked in the cradle
I tried using the usb socket on holiday in Spain/Portugal, but had lots of other problems with the sat nav (switching off, not finding the route, re-starting etc, etc) But I didnt use a 3.0 power supply.
Re: Zumo XT has never worked in the cradle
Yes, anything less than 3.0 can do switching off and re-starting every so often.Tracer 900 wrote: ↑Mon Jun 05, 2023 6:46 pm I tried using the usb socket on holiday in Spain/Portugal, but had lots of other problems with the sat nav (switching off, not finding the route, re-starting etc, etc) But I didnt use a 3.0 power supply.
In Spain I used the cradle connected to a BMW 12v socket on the bike (instead of directly to a battery as I didn't want to mess with the rented bike and still questionable result). What a nightmare it was...
Last edited by Fxwheels on Tue Jun 06, 2023 1:10 pm, edited 1 time in total.
Re: Zumo XT has never worked in the cradle
hook your XT up to the cradle and check your incoming 12v across the red/black wires, make sure its still 12v. Also check across your fuseholder, between the black wire and both sides to make sure theres not an issue there. Should be 12v on both sides with the fuse in on each blade.
-
- Posts: 5
- Joined: Sun Jun 04, 2023 4:00 pm
- Location: Newport
- Been liked: 1 time
Re: Zumo XT has never worked in the cradle
Hi, thanks for replying, and trying to help, but I dont understand.

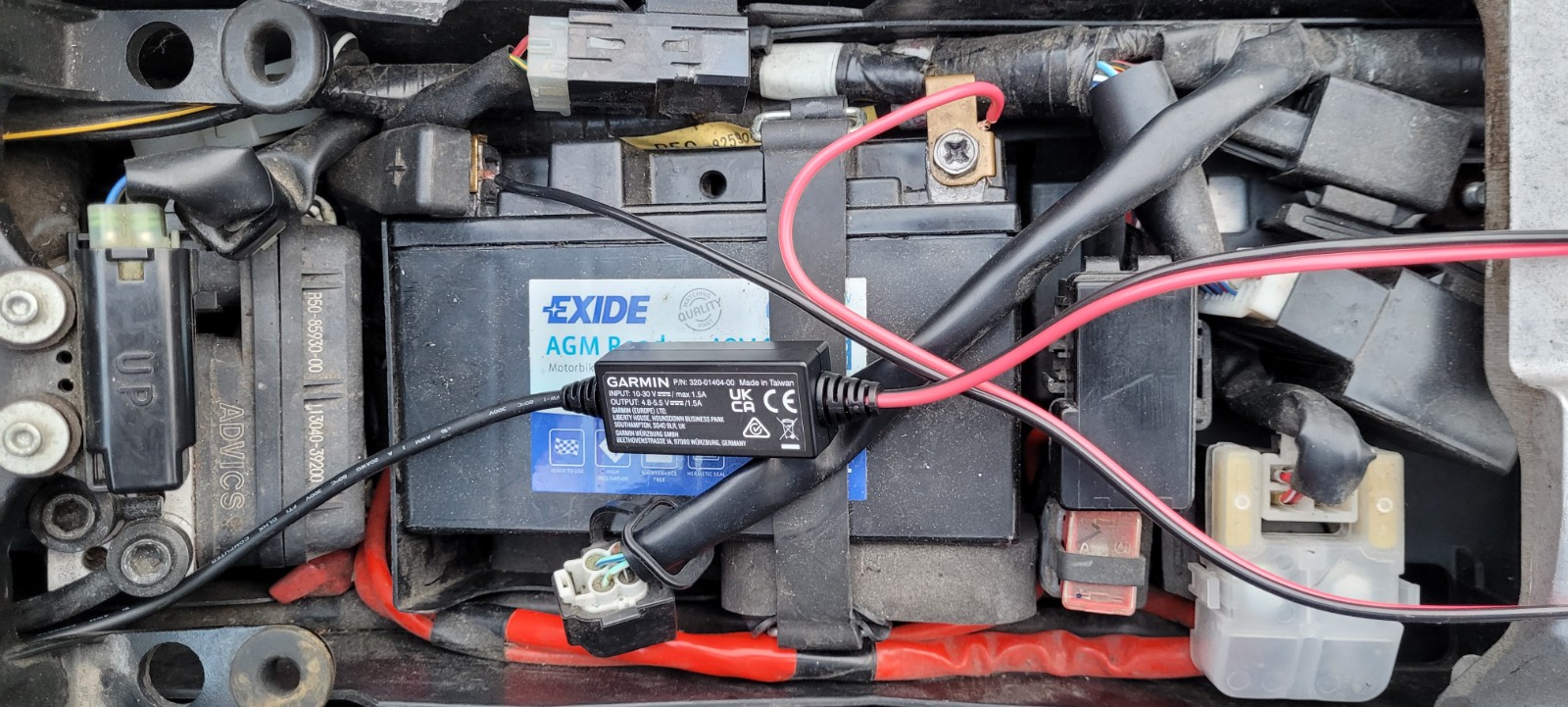

I have connected the black and red wires directly to the battery terminals (obviously black to positive, red to negative), with the zumo in place, I am getting 12.5V from the ends of the black/red wires.
But which fuse am I measuring across?
I have connected the black and red wires directly to the battery terminals (obviously black to positive, red to negative), with the zumo in place, I am getting 12.5V from the ends of the black/red wires.
But which fuse am I measuring across?
